Steel King’s exclusive Quick Ship program makes ordering the most popular Steel King® products, including the original 100% tubular SK2000® pallet rack, easy and painless.

With our Quick Ship program, you can get your rack components, industrial containers, industrial guard rail, portable racks, accessories, and wire decking in one shipment – with only one invoice to follow. Steel King®, utilizing its national purchasing power, has negotiated extremely favorable LTL rates from both our Sauk Village, IL, and Rome, GA, Quick Ship Facilities. With one simple phone call to Steel King, your Quick Ship order is placed and your freight arrangements are taken care of. No more headaches trying to find an affordable, available carrier – saving you time and money.

The PO Pre-check Form below checklist can ensure we have all required information in order to avoid unnecessary delays.

PO Pre-check Form

Steel King 48 Hour Quick Ship Terms & Conditions

Select a Quick Ship Category

SK2000 Pallet Rack
71 Products

SK3000 Structural Rack
45 Products

Cantilever Rack
17 Products

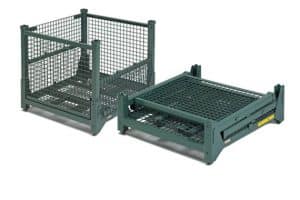

Containers
18 Products

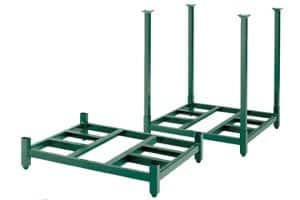

Portable Racks
13 Products

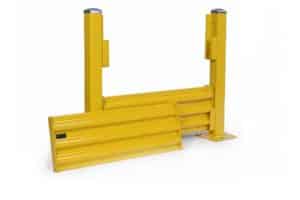

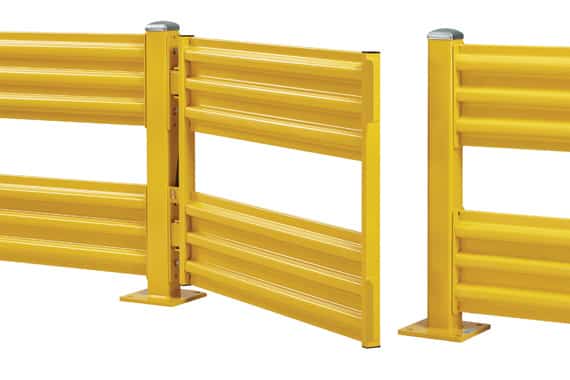

Guard Rail
54 Products

Safety Accessories
2 Products

No Category Selected

SK2000 Pallet Rack

Back to Category Selection

The industry standard tubular SK2000® Boltless Pallet Rack with tear-drop connection is available in many sizes via Steel King’s Quick Ship program. You get the 250% more damage resistant SK2000® industrial storage pallet rack in a powder coat — along with all the complementary accessories including column protectors, and even Wire Decks — all in 1 shipment straight from Steel King. No need for multiple PO’s or shipments to your jobsite — with Steel King you get your warehouse rack all in one easy shipment and bill.

Frames

Notes to Upright Capacities

  1. Capacity is based on 36″ vertical beam spacing. Larger spacing decreases capacity.
  2. Capacities based upon interior usage.
  3. Capacities are for selective rack only.
  4. Capacities are for non-seismic usage.
  5. All columns/posts must be anchored to an adequate concrete floor (required by RMI code).
  6. Capacities based upon installation in a plumb condition.
  7. Capacities are total per upright, assuming equal loading on both posts.

If any of these conditions do not apply to your application, or if you are unsure if they apply, DO NOT USE THESE CAPACITY RATINGS. In those cases, contact Steel King’s Engineering department for design information. NOTE: A Permit and/or stamped calculations may be required by the local building department prior to installation and is the responsibility of the end user..

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
RTFAG036096F01VG 36" x 96" Upright Frame

FOB Sauk Village, IL

 Vista Green 58# 27,790#
RTFAG036120F01VG 36" x 120" Upright Frame

FOB Sauk Village, IL

 Vista Green 71# 27,790#
RTFAG036144F01VG 36" x 144" Upright Frame

FOB Sauk Village, IL

 Vista Green 84# 27,790#
RTFAP042096F01PB 42" x 96" Upright Frame

FOB Sauk Village, IL

 Precaution Blue 52# 22,780#
RTFAP042144F01PB 42" x 144" Upright Frame

FOB Sauk Village, IL

 Precaution Blue 75# 22,780#
RTFAP042192F01PB 42" x 192" Upright Frame

FOB Sauk Village, IL

 Precaution Blue 98# 22,780#
RTFAG042096F01VG 42" x 96" Upright Frame

FOB Sauk Village, IL

 Vista Green 60# 27,790#
RTFAG042120F01VG 42" x 120" Upright Frame

FOB Sauk Village, IL

 Vista Green 74# 27.790#
RTFAG042144F01VG 42" x 144" Upright Frame

FOB Sauk Village, IL

 Vista Green 87# 27,790#
RTFAG042192F01VG 42" x 192" Upright Frame

FOB Sauk Village, IL

 Vista Green 114# 27,790#
RTFAG042240F01VG 42" x 240" Upright Frame

FOB Sauk Village, IL

 Vista Green 143# 27,790#
RTFAG048096F01VG 48" x 96" Upright Frame

FOB Sauk Village, IL

 Vista Green 63# 27,790#
RTFAG048120F01VG 48" x 120" Upright Frame

FOB Sauk Village, IL

 Vista Green 77# 27,790#
RTFAG048144F01VG 48" x 144" Upright Frame

FOB Sauk Village, IL

 Vista Green 90# 27,790#
RTFBP042192F01PB 42" x 192" Upright Frame

FOB Sauk Village, IL

 Precaution Blue 115# 31,340#
RTFBP042216F01PB 42" x 216" Upright Frame

FOB Sauk Village, IL

 Precaution Blue 126# 31,340#
RTFBP042240F01PB 42" x 240" Upright Frame

FOB Sauk Village, IL

 Precaution Blue 140# 31,340#
RTFBG042144F01VG 42" x 144" Upright Frame

FOB Sauk Village, IL

 Vista Green 103# 41,430#
RTFBG042192F01VG 42" x 192" Upright Frame

FOB Sauk Village, IL

 Vista Green 136# 41,430#
RTFBG042216F01VG 42" x 216" Upright Frame

FOB Sauk Village, IL

 Vista Green 153# 41,430#
RTFBG042240F01VG 42" x 240" Upright Frame

FOB Sauk Village, IL

 Vista Green 165# 41,430#
RTFBG048192F01VG 48" x 192" Upright Frame

FOB Sauk Village, IL

 Vista Green 141# 41,430#
RTFBG048240F01VG 48" x 240" Upright Frame

FOB Sauk Village, IL

 Vista Green 175# 41,430#

Step Beams

Available in Poppy Orange

  • Boltless 3 or 4 rivet connection for easy installation.
  • 1-5/8″ step for decking or pallet supports.
  • Automatically engaging beam safety locks to ensure proper installation.
  • Beams are easily adjustable in 2″ vertical increments.
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
SBRUM300048P 3" x 48" Step Beam

FOB Sauk Village, IL

 Poppy Orange 11.0# 5,860# / pair
SBRUM300096P 3" x 96" Step Beam

FOB Sauk Village, IL

 Poppy Orange 19.9# 3,020# / pair
SBRUM350096P 3-1/2" x 96" Step Beam

FOB Sauk Village, IL

 Poppy Orange 21.6# 4,000# / pair
SBRUM400096P 4" x 96" Step Beam

FOB Sauk Village, IL

 Poppy Orange 23.3# 5,080# / pair
SBRUM475096P 4-3/4" x 96" Step Beam

FOB Sauk Village, IL

 Poppy Orange 25.4# 6,080# / pair
SBRUM550096P 5-1/2" x 96" Step Beam

FOB Sauk Village, IL

 Poppy Orange 29.1# 8,100# / pair
SBRUM350108P 3-1/2" x 108" Step Beam

FOB Sauk Village, IL

 Poppy Orange 24.1# 3,240# / pair
SBRUM400108P 4" x 108" Step Beam

FOB Sauk Village, IL

 Poppy Orange 26.0# 4,180# / pair
SBRUM475108P 4-3/4" x 108" Step Beam

FOB Sauk Village, IL

 Poppy Orange 28.4# 5,480# / pair
SBRUM550108P 5-1/2" x 108" Step Beam

FOB Sauk Village, IL

 Poppy Orange 32.4# 7,320# / pair
SBRUM550120P 5-1/2" x 120" Step Beam

FOB Sauk Village, IL

 Poppy Orange 35.7# 6,700# / pair
SBRUG600144P 6" x 144" Step Beam

FOB Sauk Village, IL

 Poppy Orange 58.5# 8,020# / pair

Pallet Supports

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
PSWSG036G 36" Galvanized Waterfall Pallet Support 5.8#
PSWSG042G 42" Galvanized Waterfall Pallet Support 6.7#
PSWSG048G 48" Galvanized Waterfall Pallet Support 7.5#
PSHSP036G 36" Galvanized Hat Shaped Pallet Support (inc. hardware) 3.7#
PSHSP042G 42" Galvanized Hat Shaped Pallet Support (inc. hardware) 4.3#
PSHSP048G 48" Galvanized Hat Shaped Pallet Support (inc. hardware) 5.0#

Accessories

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
RSR3G008G 8" Galvanized Row Spacer (includes hardware) 2.3#
RSR3G012G 12" Galvanized Row Spacer (inc. hardware) 2.9#
WTR3G008VG 8" Wall Ties Vista Green (inc. hardware) 3.5#
ANCHOR.5 x 3.8 1/2" x 3-3/4" Anchor 0.3#
FPT3-5.8 3" x 5-3/4" Shim for AP/AG/BP/BG 0.7#
CLIP-SPRING-FLAT Clip Spring #

Wire Deck

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
WIREDECK4246-2700 42" x 46" Polychrome Gray Wire Deck 20.0# 2,700#
WIREDECK4846-2500 48" x 46" Polychrome Gray Wire Deck 24.0# 2,500#

14 Gauge

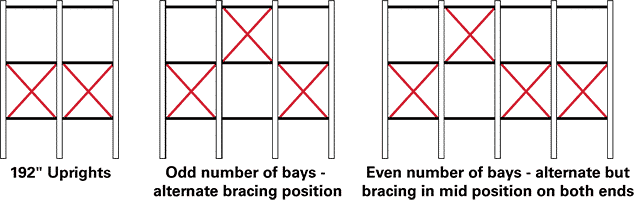

FOR SEISMIC CONSIDERATION Can be used in some seismic areas, contact your Inside Sales Representative for more information. If stamped calculations are required, 48 hour lead time does not apply.

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
RTFBG042096F042XBVG 42" x 96" Upright, 2 Cross Braces & 5" X 7" Base Plate Vista Green 83#
RTFBG042120F042XBVG 42" x 120" Upright, 2 Cross Braces & 5" X 7" Base Plate Vista Green 101#
RTFBG042144F042XBVG 42" x 144" Upright, 2 Cross Braces & 5" X 7" Base Plate Vista Green 116#
RTFBG042192F043XBVG 42" x 192" Upright, 3 Cross Braces & 5" X 7" Base Plate Vista Green 153#
RTFBG042240F043XBVG 42" x 240" Upright, 3 Cross Braces & 5" X 7" Base Plate Vista Green 186#

12 Gauge

FOR SEISMIC CONSIDERATION Can be used in some seismic areas, contact your Inside Sales Representative for more information. If stamped calculations are required, 48 hour lead time does not apply.

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
RTFBW042096F082XBVG 42" x 96" Upright, 2 Cross Braces & 5" X 7" Base Plate Vista Green 101#
RTFBW042144F083XBVG 42" x 144" Upright, 3 Cross Braces & 5" X 7" Base Plate Vista Green 146#
RTFBW042192F083XBVG 42" x 192" Upright, 3 Cross Braces & 5" X 7" Base Plate Vista Green 187#
RTFBW042240F084XBVG 42" x 240" Upright, 4 Cross Braces & 5" X 7" Base Plate Vista Green 231#

Step Beams with Seismic Weld

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
SBRUM400096ZCP 4" x 96" Step Beam Poppy Orange 23.3# 5,080# / pair
SBRUM475096ZCP 4-3/4" x 96" Step Beam Poppy Orange 25.4# 6,080# / pair
SBRUM550096ZCP 5.-1/2 " x 96" Step Beam Poppy Orange 29.1# 8,100# / pair
SBRUM475108ZCP 4-3/4 x 108" Step Beam Poppy Orange 28.4# 5,480# / pair
SBRUM550108ZCP 5-1/2" x 108" Step Beam Poppy Orange 32.4# 7,320# / pair
SBRUM550144ZCP 5-1/2" x 144" Step Beam Poppy Orange 42.2# 5,220# / pair
SBRUG600144ZP 6" x 144" Step Beam Poppy Orange 58.5# 8,020# / pair
  • Additional welds to resist seismic forces and includes 4-pin connector plates.

Boltless Rack Accessories

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
ANCHOR.5 x 4.5-HIL 1/2" x 4-1/2" Seismic Anchor 0.3#
SHIM. 125-04 Shim for 5" x 7" Base Plate 1.3#
SHIM. 125-08 Shim for 6" x 7" Base Plate 1.5#

QS Pallet Load Stop Beams – Bolted

  • New bolt-together design
  • Flexibility of either a 3” or 4” setback using the same clip
  • Most popular bay widths – 96” and 108”
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
PLBM3.4096YW 96" Load Stop Beam, 3” or 4” setback w/ same clip (inc. hardware)

FOB Sauk Village, IL

 Yellow
PLBM3.4108YW 108" Load Stop Beam, 3” or 4” setback w/ same clip (inc. hardware)

FOB Sauk Village, IL

 Yellow

Quick Ship available in Yellow only

J-Pin Beam Locks

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
.4X2J 3/8 x 2.25 Bent J Rivet, ZP

SK3000 Structural Rack

Back to Category Selection

Notes to Upright Capacities

  1. Capacity is based on 36″ vertical beam spacing. Larger spacing will decrease capacity.
  2. Capacities based upon interior usage.
  3. Capacities are for selective rack only.
  4. Capacities are for non-seismic usage.
  5. All columns/posts must be anchored to an adequate concrete floor (required by RMI code).
  6. Capacities based upon installation in a plumb condition.
  7. Capacities are total per upright, assuming equal loading on both posts.

If any of these conditions do not apply to your application, or if you are unsure if they apply, DO NOT USE THESE CAPACITY RATINGS. In those cases, contact Steel King’s Engineering department for design information. NOTE: A permit and/or stamped calculations may be required by the local building department prior to installation and is the responsibility of the end user.

Upright Frames - 3"

BCF Upright Frame

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
BCF3L036096F03PB 3" x 36" x 96" Upright Precaution Blue 83# 39,990#
BCF3L036120F03PB 3" x 36" x 120" Upright Precaution Blue 104# 39,990#
BCF3L036144F03PB 3" x 36" x 144" Upright Precaution Blue 126# 39,990#
BCF3L036192F03PB 3" x 36" x 192" Upright Precaution Blue 164# 39,990#
BCF3L042096F03PB 3" x 42" x 96" Upright Precaution Blue 86# 39,990#
BCF3L042120F03PB 3" x 42" x 120" Upright Precaution Blue 109# 39,990#
BCF3L042144F03PB 3" x 42" x 144" Upright Precaution Blue 132# 39,990#
BCF3L042192F03PB 3" x 42" x 192" Upright Precaution Blue 170# 39,990#
BCF3L048096F03PB 3" x 48" x 96" Upright Precaution Blue 89# 39,990#
BCF3L048120F03PB 3" x 48" x 120" Upright Precaution Blue 113# 39,990#
BCF3L048144F03PB 3" x 48" x 144" Upright Precaution Blue 137# 39,990#
BCF3L048192F03PB 3" x 48" x 192" Upright Precaution Blue 177# 39,990#

Upright Frames - 4"

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
BCF4L048096F03PB 4" x 48" x 96" Upright Precaution Blue 115# 56,860#
BCF4L042192F03PB 4" x 42" x 192" Upright Precaution Blue 223# 56,860#
BCF4L048120F03PB 4" x 48" x 120" Upright Precaution Blue 149# 56,860#
BCF4L048144F03PB 4" x 48" x 144" Upright Precaution Blue 180# 56,860#
BCF4L048192F03PB 4" x 48" x 192" Upright Precaution Blue 232# 56,860#
BCF4L036096F03PB 4" x 36" x 96" Upright Precaution Blue 106# 56,860#
BCF4L036120F03PB 4" x 36" x 120" Upright Precaution Blue 136# 56,860#
BCF4L036144F03PB 4" x 36" x 144" Upright Precaution Blue 163# 56,860#
BCF4L036192F03PB 4" x 36" x 192" Upright Precaution Blue 214# 56,860#
BCF4L042096F03PB 4" x 42" x 96" Upright Precaution Blue 110# 56,860#
BCF4L042120F03PB 4" x 42" x 120" Upright Precaution Blue 142# 56,860#
BCF4L042144F03PB 4" x 42" x 144" Upright Precaution Blue 172# 56,860#

Channel Beams

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
CB7XH300108BP51-48YW 3" x 108" Yellow 42# 4,040# / pair 4,420# / pair
CB7XH500108BP51-48YW 5" x 108" Yellow 66# 7,880# / pair 12,880# / pair
CB7XH400096BP51-40YW 4" x 96" Yellow 49# 7,120# / pair 10,180# / pair
CB7XH300120BP51-40YW 3" x 120" Yellow 46# 3,320# / pair 3,680# / pair
CB7XH400108BP51-48YW 4" x 108" Yellow 54# 5,660# / pair 8,820# / pair
CB7XH400120BP51-40YW 4" x 120" Yellow 59# 4,600# / pair 7,340# / pair
CB7XL300072BP51-30YW 3" x 72" Yellow 26# 5,960# / pair 7,480# / pair
CB7XH300096BP51-40YW 3" x 96" Yellow 38# 4,900# / pair 5,460# / pair
CB7XH500120BP51-40YW 5" x 120" Yellow 72# 6,360# / pair 11,180# / pair
CB7XH500144BP71-40YW 5" x 144" Yellow 86# 4,420# / pair 8,580# / pair

Beam Ties

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
PSB5X036YW 36" Beam Tie / 5" Beam (inc. hardware) Yellow 6.0#
PSB5X042YW 42" Beam Tie / 5" Beam (inc. hardware) Yellow 7.0#
PSB5X048YW 48" Beam Tie / 5" Beam (inc. hardware) Yellow 8.0#

Row Spacers

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
RSC3G008PB 8" Row Spacer / 3" Frame (inc. hardware) Precaution Blue 3.1#
RSC3G010PB 10" Row Spacer / 3" Frame (inc. hardware) Precaution Blue 3.3#
RSC3G012PB 12" Row Spacer / 3" Frame (inc. hardware) Precaution Blue 3.5#
RSC4G008PB 8" Row Spacer / 4" Frame (inc. hardware) Precaution Blue 4.0#
RSC4G010PB 10" Row Spacer / 4" Frame (inc. hardware) Precaution Blue 4.2#
RSC4G012PB 12" Row Spacer / 4" Frame (inc. hardware) Precaution Blue 4.4#

Accessories

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
ANCHOR.5 x 3.8 1/2"x 3-3/4" Anchor 0.3#
SHIM. 125-03 Shim for 3" OR 4" Channel Upright 1.2#

Cantilever Rack

Back to Category Selection

Steel King’s I-Beam Cantilever Rack allows you to store large, bulky items with ease. Single or double-side racks – order additional base and arms for double-sided installation

  • 12′ or 16′ columns
  • Brace kits simplify ordering for 48″, 60″ and 72″ column spacing
  • The bolt-together design allows for more compact packaging and reduced freight compared to current fully welded columns.
  • 48″ straight arms, adjustable on 4″ centers (incline 1/4″ per foot.)
  • 2,600# capacity per arm
  • 48″ bolted bases

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

144″ Columns/Bases

  • Includes hardware

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
IBCW8x21-144PB Column, 144", W8x21

FOB Rome, GA

 270 13,010 lb. cap per side w 48" arms
IBCW8x21-048-BASEPB Base, 144", W8x21

FOB Rome, GA

 103

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

144″ Brace Kits

  • 2 horizontals
  • 2 diagonals
  • hardware

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
12-48-IBC-BRACEKIT 12 ft x 48" Brace Kit

FOB Rome, GA

 48" Spacing 47
12-60-IBC-BRACEKIT 12 ft x 60" Brace Kit

FOB Rome, GA

 60" Spacing 56
12-72-IBC-BRACEKIT 12 ft x 72" Brace Kit

FOB Rome, GA

 72" Spacing 64

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

Shims (for 144″ Units)

  • 1 Column Shim per Column
  • 1 Base Shim per Base
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
FP-5.25x8x14GA-IBCSHIM Shim, Column, W8x21

FOB Rome, GA

 1
S14-06x012-IBCBASESHIM Shim, Base, W8x21

FOB Rome, GA

 1.6

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

192" Columns/Bases

Includes hardware

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
IBCW10x26-192PB Column, 192", W10x26

FOB Rome, GA

 447 18,530 lb. cap per side w 48" arms
IBCW10x26-048-BASEPB Base, 192", W10x26

FOB Rome, GA

 126

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

192" Brace Kits

  • 3 horizontals
  • 2 diagonals
  • hardware
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
16-48-IBC-BRACEKIT 16 ft x 48" Brace Kit

FOB Rome, GA

 48" Spacing 60
16-60-IBC-BRACEKIT 16 ft x 60" Brace Kit

FOB Rome, GA

 60" Spacing 72
16-72-IBC-BRACEKIT 16 ft x 72" Brace Kit

FOB Rome, GA

 72" Spacing 84

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

Shims (for 192″ Units)



  • 1 Column Shim per Column
  • 1 Base Shim per Base
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
FP-5.75x10x14GA-IBCSHIM Shim, Column, W10x26

FOB Rome, GA

 1.25
S14-05.75x012-IBCBASESHIM Shim, Base, W10x26 1.6

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

Arms

  • Hardware included
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
IBA-S4x7.7-048P Arm, 48", S4x7.7#

FOB Rome, GA

 39 2,600 lb. capacity

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

Accessories

Anchors: 2 per base; 1 per column Pipe Socket: Includes hardware; 1″ removable pipe/chain not included

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
ANCHOR.8x5.5-CC Anchor, 3/4 x 5.5" Cracked Concrete

FOB Rome, GA
IB4X7.7-ARM-PS Pipe Stop Socket, bolted

FOB Rome, GA

 2.5

Steel King I-Beam Cantilever Quick Ship Pallet Rack has a two-week lead time and is ONLY available FOB Rome, GA 30161

Containers

Back to Category Selection

Steel King Containers have a two-week lead time and is ONLY available FOB Rome, GA 30161

Round Corner Corrugated Containers

Heavy corrugated steel sides and deck make Steel King’s round corner corrugated containers a rugged and durable general purpose container. Universal stacking feet provide easy stack-ability.

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
RCCM324024VG 32" x 40" x 24" Vista Green 205# 4,000#
RCCM324024PP 32" x 40" x 24" Poppy 205# 4,000#
RCCM324024YW 32" x 40" x 24" Yellow 205# 4,000#
RCCM324024PB 32" x 40" x 24" Precaution Blue 205# 4,000#
RCCM404824VG 40" x 48" x 24" Vista Green 258# 4,000#
RCCM404824PP 40" x 48" x 24" Poppy 258# 4,000#
RCCM404824YW 40" x 48" x 24" Yellow 258# 4,000#
RCCM404824PB 40" x 48" x 24" Precatuion Blue 258# 4,000#

Hold 'N Fold® Containers

Utilize the space savings of fold-down baskets with the durability of rigid containers with Steel King’s patented Hold ‘N Fold® containers. Ideal for the inter- or intra-plant shipments, Hold ‘N Fold containers self lock when empty, eliminating the need for banding.

  • Stackable six high while loaded
  • Half-drop gate on both long sides
  • Wire mesh or corrugated steel
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
HF4WM454842VG Wire Mesh H&F 45" x 48" x 42" Vista Green 325# 4,000#
HF4CM454842VG Corrugated H&F 45" x 48" x 42" Vista Green 436# 4,000#

WorkingTainers®

Steel King’s WorkingTainers® perform double duty as storage containers and dispensing units, reducing material movement and allowing work areas to double as storage areas.

  • 24″ usable depth; 30.5″ overall height
  • Stackable six units high, while loaded
  • Heavy duty tubular base and corner posts for durability
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
HDWT3036VG 30" x 36" x 24" nom. Vista Green 159# 4,000#
HDWT3240VG 32" x 40" x 24" nom. Vista Green 182# 4,000#
HDWT3644VG 36" x 44" x 24" nom. Vista Green 203# 4,000#
HDWT4048VG 40" x 48" x 24" nom. Vista Green 224# 4,000#

WorkingTainer® - Tilt Stands

Steel King’s WorkingTainers® perform double duty as storage containers and dispensing units, reducing material movement and allowing work areas to double as storage areas.

  • 24″ usable depth; 30.5″ overall height
  • Stackable six units high, while loaded
  • Heavy duty tubular base and corner posts for durability
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
TSS3036VG Tilt & Store Stand for 30" x 36" Vista Green 133#
TSS3240VG Tilt & Store Stand for 32" x 40" Vista Green 138#
TSS3644VG Tilt & Store Stand for 36" x 44" Vista Green 203#
TSS4048VG Tilt & Store Stand for 40" x 48" Vista Green 224#

Portable Racks

Back to Category Selection

Stac-King Portable Racks

With Steel King’s Stac-King® portable racks you can protect your loads during handling, stacking and shipping. Stac-King racks act as their own pallet, eliminating the need and cost of wooden pallets. The Stac-King rack’s vertical posts allow the racks to be stacked up to six units high, without load-on-load contact: helping to eliminate product crush damage.

  • 4-way (short-fork) base
  • Open or wood board deck
  • Four base sizes
  • Three post sizes (sold separately)
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
HD4248SFWDHSVG Base, Wood Deck Vista Green 42" x 48" 86# 4,000#
HD4260SFWDHSVG Base, Wood Deck Vista Green 42" x 60" 98# 4,000#
HD4848SFWDHSVG Base, Wood Deck Vista Green 48" x 48" 94# 4,000#
HD4860SFWDHSVG Base, Wood Deck Vista Green 48" x 60" 103# 4,000#
HD4248SFODHSVG Base, Open Deck Vista Green 42" x 48" 83# 4,000#
HD4260SFODHSVG Base, Open Deck Vista Green 42" x 60" 92# 4,000#
HD4848SFODHSVG Base, Open Deck Vista Green 48" x 48" 89# 4,000#
HD4860SFODHSVG Base, Open Deck Vista Green 48" x 60" 93# 4,000#
HDC36VG Post Vista Green 36" 9.0#
HDC48VG Post Vista Green 48" 12#
HDC60VG Post Vista Green 60" 18#

Pin Rack

Steel King specializes in the custom design of shipping racks. The Pin Rack’s metal slots accept drop-in pins, which allow custom configurations to hold and secure odd shaped parts.

  • Inter stacks with portable racks
  • Stackable up to 10 high
  • 5/8″ diameter pins (pins sold separately)
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
PINRACK4040VG Pin Rack Vista Green 40" x 40" 130# 4,000#
PIN14VG 14 pins (12" Useable) Vista Green 14" 1.2#

Guard Rail

Back to Category Selection

Protect workers, machinery, loading docks and pallet rack from damage with Steel Guard’s pre-fabricated, modular design.

  • Available in single high or double high versions.
  • Posts are 4″ square structural tubing on a 10″ square base plate. Posts include four 3/4″ x 5-1/2″ anchors and cap.
  • Rails are 14-1/2″, 11-gauge, 3 ribbed rails. Bolted or lift-out versions available.

Steel Guard - Guard Rail Posts

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
SCLYW 18" Center Post, Single High Yellow 40#
SCLEYW 18" Offset End Post, Single High Yellow 40#
SCLSYW 18" Offset Side Post, Single High Yellow 40#
SCOYW 18" Corner Post, Single High Yellow 40#
SCOOYW 18" Offset Corner Post, Single High Yellow 40#
SREYW 18" Reinforcement Post, Single High Yellow 40#
DCLYW 42" Center Post, Double High Yellow 65#
DCLEYW 42" Offset End Post, Double High Yellow 65#
DCLSYW 42" Offset Side Post, Double High Yellow 65#
DCOYW 42" Corner Post, Double High Yellow 65#
DCOOYW 42" Offset Corner Post, Double High Yellow 65#
DREYW 42" Reinforcement Post, Double High Yellow 65#

Steel Guard - Bolted Guard Rails

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
GR01YW 1 ft. Bolted Guard Rail (actual 8") Yellow 14#
GR02YW 2 ft. Bolted Guard Rail (actual 20") Yellow 24#
GR03YW 3 ft. Bolted Guard Rail (actual 32") Yellow 34#
GR04YW 4 ft. Bolted Guard Rail (actual 44") Yellow 44#
GR05YW 5 ft. Bolted Guard Rail (actual 56") Yellow 54#
GR06YW 6 ft. Bolted Guard Rail (actual 68") Yellow 64#
GR07YW 7 ft. Bolted Guard Rail (actual 80") Yellow 74#
GR08YW 8 ft. Bolted Guard Rail (actual 92") Yellow 84#
GR09YW 9 ft. Bolted Guard Rail (actual 104") Yellow 94#
GR10YW 10 ft. Bolted Guard Rail (actual 116") Yellow 104#

Steel Guard - Lift-Out Rails

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
GR01LYW 1 ft. Lift-out Guard Rail (actual 6") Yellow 27#
GR02LYW 2 ft. Lift-out Guard Rail (actual 18") Yellow 37#
GR03LYW 3 ft. Lift-out Guard Rail (actual 30") Yellow 46#
GR04LYW 4 ft. Lift-out Guard Rail (actual 42") Yellow 54#
GR05LYW 5 ft. Lift-out Guard Rail (actual 54") Yellow 66#
GR06LYW 6 ft. Lift-out Guard Rail (actual 66") Yellow 74#
GR07LYW 7 ft. Lift-out Guard Rail (actual 78") Yellow 87#
GR08LYW 8 ft. Lift-out Guard Rail (actual 90") Yellow 94#
GR09LYW 9 ft. Lift-out Guard Rail (actual 102") Yellow 106#
GR10LYW 10 ft. Lift-out Guard Rail (actual 114") Yellow 114#

Steel Guard - Accessories / Replacement Parts

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
TUBE-CAP 4" Square Replacement Post Cap 0.45#
BCSG1010 Steel Guard Base Cover Yellow 8.5#

Steel Guard - Safety Gate

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
SGSLG-048 Steel Guard Safety Gate Yellow 100#

Armor Guard - Guard Rail Posts

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
SCUMDYW 12" Universal Post with Cap-Single High Yellow 24#
SCUOMDYW 12"Corner Offset Post with Cap-Single High Yellow 24#
SCUSMDYW 12" Side Offset Post with Cap-Single High Yellow 24#
TCUMDYW 42" Universal Post with Cap-Triple High Yellow 47#
TCUOMDYW 42" Corner Offset Post with Cap-Triple High Yellow 47#
TCUSMDYW 42" Side Offset Post with Cap-Triple High Yellow 47#

Armor Guard - Rails

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
GR01MDYW 1 ft Guard Rail (actual 9") Yellow 9.1#
GR02MDYW 2 ft Guard Rail (actual 21") Yellow 16.6#
GR03MDYW 3 ft Guard Rail (actual 33") Yellow 24.1#
GR04MDYW 4 ft Guard Rail (actual 45") Yellow 31.6#
GR05MDYW 5 ft Guard Rail (actual 57") Yellow 39.0#
GR06MDYW 6 ft Guard Rail (actual 69") Yellow 46.5#
GR07MDYW 7 ft Guard Rail (actual 81") Yellow 54.0#
GR08MDYW 8 ft Guard Rail (actual 93") Yellow 61.5#
GR09MDYW 9 ft Guard Rail (actual 105") Yellow 69.0#
GR10MDYW 10 ft Guard Rail (actual 117") Yellow 76.5#

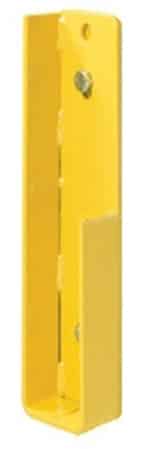

Armor Guard - Lift-Out Rail Pocket

Notes:

  • Lift-out pocket mounting hardware is included with posts. Same hardware as used to secure bolt-in rails.
  • Use of Lift-out pockets will increase post center lines by 1″.
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
GRMDLOP Lift-out Pocket Set (1 left, 1 right)* Yellow 8.4# set

Armor Guard - Accessories / Replacement Parts

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
TUBE-CAP 3 3" Square Replacement Post Cap 0.45#

Accessories

Back to Category Selection

Guard Dawg

Ideal for pallet rack end guards

  • Protects 3″ or 4″ wide, 42″ deep uprights
  • Includes (4) 3/4″ x 5-1/2″ anchors
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
GDRL11046YW 46" Right Side Guard Dawg Yellow 53.2#
GDLL11046YW 46" Left Side Guard Dawg Yellow 53.2#

SK Snap-Guard Protectors

Adjustable, moveable and flexible, Steel King’s SK Snap-Guard is a versatile column protector designed to provide aftermarket protection for Steel King’s SK2000 uprights. Use at the base of each upright, or protect the front column at each storage level.

Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
SP3L1012YW 12" Snap-On Column Protector 3.5#
SP3L1018YW 18" Snap-On Column Protector 4.6#
SP3L1024YW 24" Snap-On Column Protector 5.9#
SP3LTOOL Snap-On Column Protector Tool 1.1#

Free Standing Column Protectors

  • Protects 3″ or 4″ wide column uprights
  • Includes (4)-1/2″ x 3-3/4″ anchors
Qty. Model # Description Color Size # of Arms Wt. Each Max. Capacity Max. Capacity No Beam Tie Max. Capacity w/ Beam Tie
FPS3-4D012YW 12" Column Protector Yellow 12.5#
FPS3-4D018YW 18" Column Protector Yellow 17.2#
FPS3-4D024YW 24" Column Protector Yellow 19.3#
